Scissor Lift 32' x 32", Electric, Narrow

MODEL- GENIE..3232 SCISSOR LIFT

• DIMENSIONS- L= 8'/ W= 32"/ H= 8'...(w/Rails Lowered 7'2")
• WEIGHT- 5185 lbs.
• HEIGHT RAISED- 32' @ Platform/ 35' 7" @ Rails
• LIFT CAPACITY- 500 lbs.
• PLATFORM DIMENSIONS- W= 32"/ L= 89" +36" Extension Deck
• RAIL HEIGHT- Raised= 43"/ Lowered= 33"
• DRIVE SPEED- Stowed- 2.2 MPH...Raised- .5 MPH
• GRADEABILITY- 25%
• AUTOMATIC LEVELING OUTRIGGERS
• MAX. DRIVE HEIGHT- 22Ft.

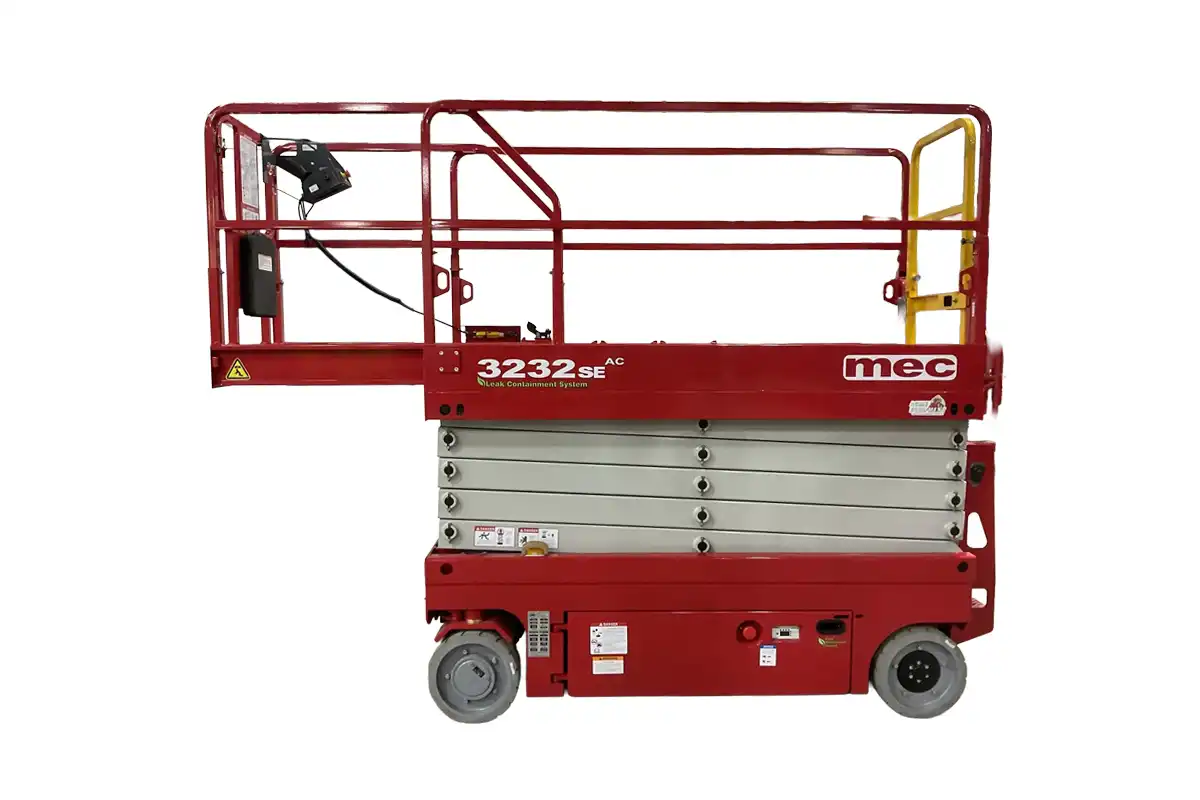

MODEL- MEC 3232SE SCISSOR LIFT

• W/Leak Containment System
• DIMENSIONS- L= 97"/ W= 32"/ H= 96"...(w/Rails Folded 78")
• WEIGHT- 7145 lbs.
• HEIGHT RAISED INDOORS- 32' @ Platform/ 43.5" @ Rails
• HEIGHT RAISED OUTDOORS- 24' @ Platform
• LIFT CAPACITY- 550 lbs. Platform Cap.- 250 lbs.
• PLATFORM DIMENSIONS- W= 32"/ L= 89" +35" Extension Deck
• RAIL HEIGHT- Raised= 43.5"/ Lowered= 25.5"
• DRIVE SPEED- Stowed- 3.0 MPH...Raised- 0.5 MPH
• GRADEABILITY- 25%
• NO OUTRIGGERS
• MAX. DRIVE HEIGHT- 32Ft. Indoors
